Wildland Fire Suppression Tactics Reference Guide


Download .pdf copy of Wildland Fire Suppression Tactics Reference Guide, (5.19 mb)


PREFACE & CONTENTS

INTRODUCTION TO REFERENCE GUIDE

  • FIRE ORDERS
  • WATCH OUT SITUATIONS
  • LOOKOUTS, COMMUNICATIONS, ESCAPE ROUTES, SAFETY ZONES
     (LCES)

SECTION 1—FIRE SUPPRESSION PRINCIPLES

SECTION 2—USE OF WATER AND ADDITIVES

  • Types of Pumps
  • Hydraulics
  • Series, Parallel, and Staged Pumping
  • Hose Lays
  • Mopup
  • Tactical Use of Water
  • Surfactants
  • Class A Foam
  • Retardants
  • Firegels

SECTION 3—USE OF FIRE IN CONTROL OPERATIONS

  • Burning Out and Backfiring
  • Types of Fire Spread
  • Ignition Techniques
  • Strip Firing
  • One, Two, Three -Three, Two, One (1-2-3/3-2-1) Firing Concept
  • Head and Strip Head Firing
  • Blowhole Firing
  • Spot Firing
  • Ring Firing
  • Chevron Firing
  • Burn Strip
  • Planning and Conducting Firing Operations
  • Special Firing Considerations
  • Firing Equipment

SECTION 4—MECHANICAL EQUIPMENT

  • Dozers
  • Comparison of Dozers Used For Fireline Construction
  • Dozer Production Rates
  • Dozer Line Construction Principles
  • Tractor Plows
  • Principles of Tractor/Plow Operations
  • Engines
  • Mobile Attack
  • Tandem Tactic
  • Pincer Tactic
  • Envelopment Tactic
  • Stationary Attack
  • Inside-out Tactic
  • Parallel Attack
  • Engine Production Rates

SECTION 5—TACTICAL AIR OPERATIONS

  • Factors Affecting Aircraft Use
  • Factors to Consider in Retardant Aircraft Use
  • Types, Effects, and Use of Retardant
  • Recommended Retardant Coverage Levels
  • Retardant Evaluation Criteria
  • Air Tanker Tactics
  • Principles of Retardant Application

SECTION 6 -WILDLAND/URBAN INTERFACE

  • Kinds of Wildland/Urban Interface
  • Structural Fire Behavior
  • WildlandlUrban Fire Sizeup Considerations
  • Structure Triage
  • WildlandlUrban Interface Firefighting Tactics
  • Structure Full Containment
  • Structure Partial Containment
  • Structure No Containment
  • Structural Firefighting Situations That Shout "Watch Out"
  • Structural Watch Out Situations & Triage Made Easier to Remember

SECTION 7 -FUELS, FIRE BEHAVIOR, AND TACTICS BY GEOGRAPHIC
 AREAS OF THE UNITED STATES

  • Alaska
  • Northwest and Northern Rocky Mountains
  • Southern and Central California
  • Great Basin and Southern Rocky Mountains
  • Southwest
  • Northeast
  • Southeast

GLOSSARY OF TERMS



WILDLAND FIRE
SUPPRESSION TACTICS REFERENCE GUIDE

PMS 465
NFES 1256

APRIL 1996


SECTION 1 -FIRE SUPPRESSION PRINCIPLES (continued)

FIRELINE CONSTRUCTION

Following are some of the more important principles of fireline construction:

Make fireline no wider than necessary (see Figure 15). The time and energy saved by keeping firelines no wider than necessary to stop a fire can be better utilized in construction of more fireline to encircle or control the fire.

Clean all fireline to mineral soil for all or part of width (see Figure 16). Cleaning a fireline to mineral soil prevents the fire from spreading through fuel across the fireline, particularly dead roots. However, constructing fireline to mineral soil may not be practical in some types of fuel such as bogs, peat, tundra, etc.

Figure 16—Fireline Cleaned To Mineral Soil Fireline Cleaned To Mineral Soil

Scatter charred or burning material from fireline construction inside the burned area.

Unburned material from fireline construction is generally scattered outside the fireline. Unburned material can be scattered on either side of the fireline, provided this does not increase burning and heat at the line and make the line too hard to hold or complicate mopup; if fuel is needed for burning out, place inside the fireline.

Underslung or undercut fireline is fireline constructed across a slope below the fire. Protect underslung or undercut firelines from rolling material by building a cup trench (see Figure 17). A cup trench is sometimes called a roll trench or "V" trench.

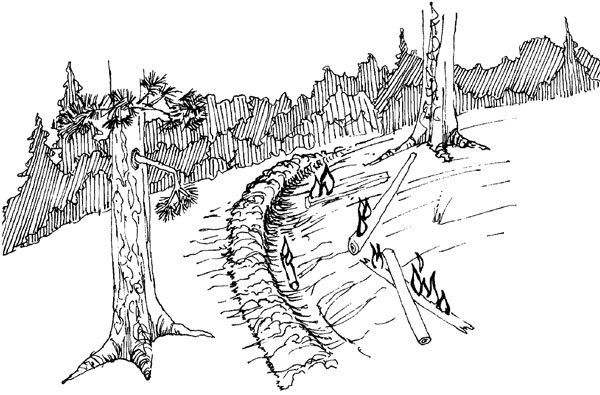

Figure 17—Cup Trench Below A Fire On A Slope
Cup Trench Below A Fire On A Slope

Effectiveness of a given width of line can be increased by using dirt or water to cool down adjacent fire.

Fuels outside the fireline can be pretreated with retardant or foam, covered with dirt, or wet down. (see Figure 18).

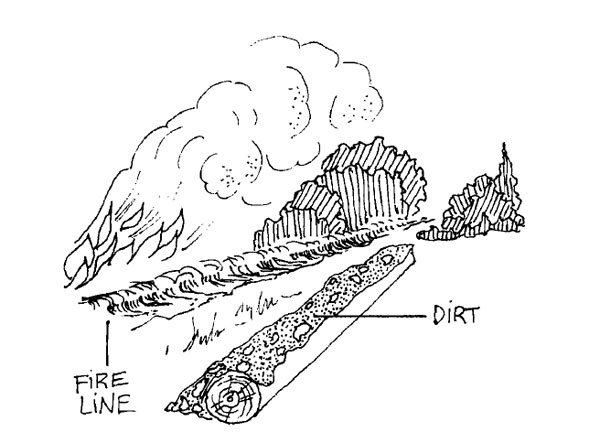

Figure 18—Protection of Stumps and Logs Outside Fireline
Protection of Stumps and Logs Outside Fireline
Protection of Stumps and Logs Outside Fireline

Remove low hanging limbs from trees on both sides of the fireline to prevent the fire from spreading across the line (see Figure 19).

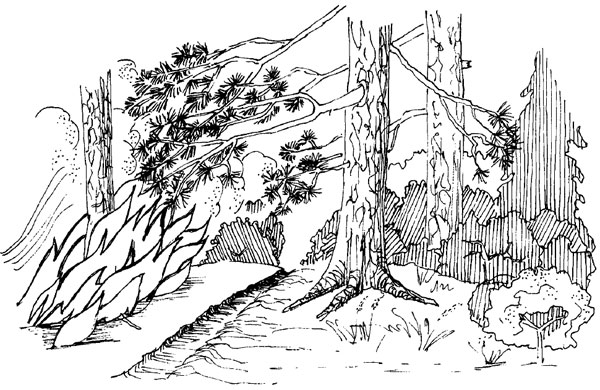

Figure 19—Low Hanging Limbs Can Spread Fire Across Fireline
Low Hanging Limbs Can Spread Fire Across Fireline

Heat can ignite fuel across or above the fireline even if flames do not reach the fuel. Radiant or convective heat may ignite fuel on the opposite side of a fireline which is too narrow or has too little overhead clearance.

Radiation is transmission of heat through the air by rays. The heat may be radiated in all directions, horizontally as well as vertically (similar to heat radiated from a stove). Fuels too close to intense heat can be ignited even if they are not in contact by flame (see Figure 20).

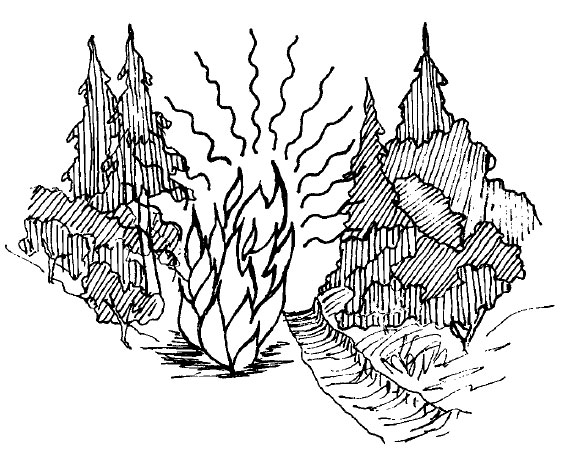

Figure 20—Fire Spread Across Fireline By Radiation
Fire Spread Across Fireline By Radiation

Convection is transmission of heat by currents of air. Convection currents preheat the fuel ahead of a fire (across and/or above the fireline) and make the fuel easier to ignite (see Figure 21). If too close, fuel can actually be ignited by convection currents.

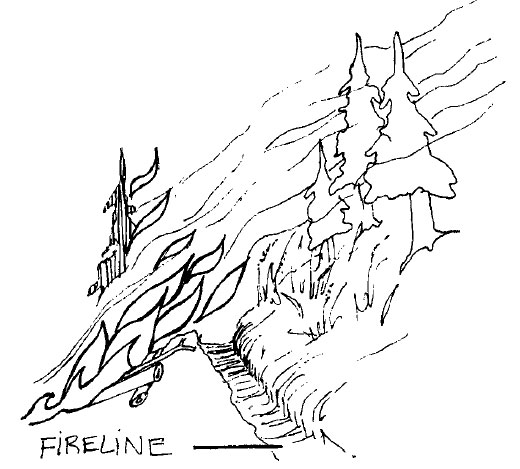

Figure 21—Fire Spread Across Fireline By Convection
Fire Spread Across Fireline By Convection

Anything that affects how a fire burns must be considered in deciding the width of fireline needed to hold or control a fire. The hotter or faster the fire burns, the wider the control line must be. Six important factors in determining fireline width are: 1) fuel, 2) slope, 3) weather, 4) part [head, flanks, rear] of fire, 5) size of fire, and 6) possibility of cooling.

The width of a fireline is generally accomplished by clearing and scraping (see Figure 22). Brush, trees, and logs must be removed by clearing a strip wide enough to prevent the flames, radiation or convective heat or any combination of the three from igniting fuel across the fireline. All flammable material must be removed by scraping to mineral soil a strip wide enough to prevent fire from spreading through roots and other ground fuel across the fireline. The scraped strip must be placed on the outside (side away from the fire) of the cleared strip.

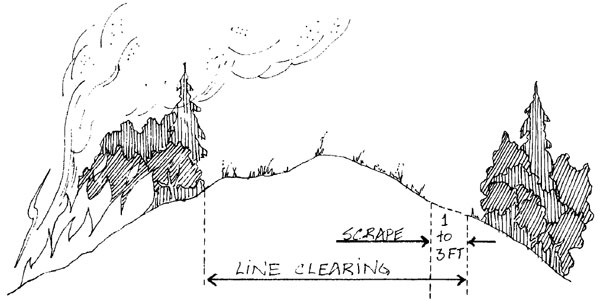

Figure 22—Fireline Showing Cleared and Scraped Area
Fireline Showing Cleared and Scraped Area

A general guideline for determining the width of a fireline is that it should be one and one half times as wide as the dominate fuel is high. The scraped portion of a fireline is generally one to three feet wide. However, in timber a fireline is generally 20 to 30 feet wide with a three to four foot scrape. A fireline in timber should be constructed to stop the burning surface and lower aerial fuels. Most firelines will be unsuccessful in stopping a crown fire in timber.
