USFS shield logoFire Behavior Associated with the 1994 South Canyon Fire on Storm King Mountain, Colorado


Fire Behavior Discussion (continued)

Fire on West Flank

As the fire burned through the bottom of the West Drainage, up onto the Bench, and up the slopes, it was influenced by two windflow patterns: the upcanyon (southerly) flow in the bottom of the West Drainage and the westerly flow associated with the passing cold front. There is strong evidence in the form of witness observations, photographs (fig. 35), and postfire meteorological modeling to support the existence of strong upcanyon winds in the West Drainage. These winds pushed the fire up the drainage. As fire burned along the bottom of the West Drainage, it spread up onto the West Bench where it began burning in the Gambel oak canopy. Once the fire burned above the Bench, it was increasingly exposed to the westerly winds blowing across the north-south oriented ridges. The result was short duration rapid fire runs east to the top of the Main Ridge. The fire was essentially spreading in two directions, one front moving northeast and one front east (fig. 27). It was the first series of the eastward runs that caused the firefighters moving south along the Main Ridge toward H-1 to turn around at the rocks and retreat back toward H-2.

Our analysis suggests that the fire was spreading north, up the canyon, at approximately 3 feet per second. Spread rates of 7 feet per second occurred on midslope runs and northeast directed runs between Erickson’s Spot Fire and H-2. We estimate that the upslope runs from the West Bench to the Main Ridge occurred at a rate of 6 to 9 feet per second (see table B-8).

Although there were no eyewitnesses to the fire event in which 12 firefighters perished on the West Flank Fireline near the tree, the available information suggests three possible fire behavior scenarios. They are presented below. We believe the three scenarios represent the most likely events. The actual sequence of events may have included parts of all three scenarios. We also discuss the fire behavior that resulted in the deaths of the two helitack crewmembers. Finally, we address the possibility of a fuel-air explosion.

One scenario, referred to as the “U” shaped fire front, involves fire burning on three sides of the firefighters as they started up the last section of the fireline. A second scenario, termed the surfacing smoke column, is based on the assumption that strong westerly winds blowing across the top of the north-south oriented ridges pushed the column of smoke and hot gases against the slope. This simultaneously ignited the vegetation over a relatively wide area around the firefighters. A third scenario simply assumes that the fire on the West Bench below the firefighters ignited a rapid upslope run. This run, assisted by westerly winds, burned quickly up the Draw, overtaking the group of firefighters hiking up the fireline.

The fire conditions and events last observed and recorded by witnesses in the area of West Flank Fireline are common starting points for all three scenarios. The following is a short review of those conditions and observations.

At approximately 1608:30 BLM Firefighter Haugh and Smokejumper Erickson were at the Tree. They heard the fire roar as it burned into the previously underburned Gambel oak near the 1,450 foot mark on the West Flank Fireline. Haugh and Erickson then saw firefighters coming up the fireline where it passes over the top of the Spur Ridge. The fire on the West Bench was starting to catch up to the crew hiking up the fireline. Erickson called Smokejumper Mackey to warn him of the fire approaching from behind the Spur Ridge. There was no noticeable wind at the Tree, but the firefighters could see wind pushing the flames and smoke on the east-facing slopes across the West Drainage from them.

As the firefighters on the West Flank Fireline came closer (about 500 to 550 feet below the Zero Point) Erickson saw a bearded McCall Smokejumper (Roth) in the lead. There was a yellowish glow over the West Bench. Erickson also recognized Mackey, who was the second person from the end as the group came over the Spur Ridge. Erickson then saw a spot fire appear directly below and west of him. He later located this spot fire on the West Bench near the West Drainage and about 75 feet north of the small draw that runs directly up the slope towards the Tree (fig. 40). Almost instantly the spot started to grow and Erickson called Mackey on the radio and warned him of the spot fire (about 1610:30). Erickson then took out his camera to take a picture of Mackey near the end of the oncoming firefighters. His camera was out of film.

At about 1611, Archuleta and Doehring, who were at the Photo Point located on the Main Ridge and north and east of Erickson, took a series of four

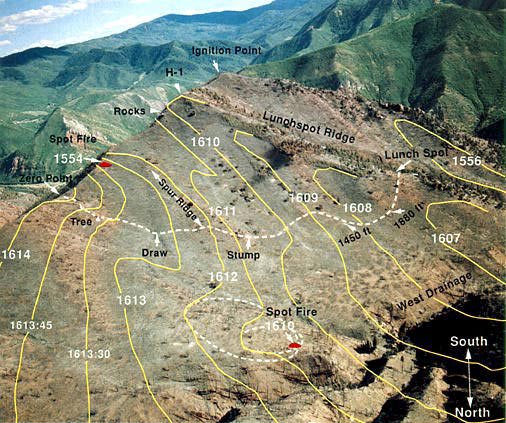

Figure 40—Approximate fire perimeter positions between 1607 and 1614 on July 6, 1994. These perimeters are estimated from reconstruction of events, firefighter movements and witness statements. As such, the perimeters are subject to some uncertainty. J. Kautz, U.S. Forest Service, Missoula, MT.

photographs. The first two photos show the last three West Flank Firefighters before they disappeared into the Draw 445 feet down the fireline from the Zero Point. Haugh, Erickson, Archuleta and Doehring all report that the fire behind the Spur Ridge roared as it crossed the fireline. Our analysis indicates that this occurred near the Stump. The fire burned quickly up the slope to the top of the ridge. We later determined from the photos that at this time the northeastern edge of the fire on the West Bench was about 200 feet south of the Draw and directly below the Tree. The West Bench fire had been advancing in a hook and run or “J” pattern, and the bottom edge of the “J” was now 200 to 300 feet from Erickson’s spot fire. Erickson said the sky was all orange and the spot fire was growing rapidly as he turned and headed up the fireline toward the Zero Point (time, 1611:15). This was the last observation about the fire below the West Flank Firefighters and leads into our three most probable scenarios.

At this time (1611:15) both the leading edge of the West Flank Fire and the spot fire could have been the source for the fire that burned east up the slope and overran the 12 firefighters and a short time later H-2. Erickson’s spot fire quickly merged with the main fire and continued burning toward H-2 and the saddle below the Drop Zone. The fire coming through the saddle below the Drop Zone cut the two helitack crewmen off from the East Drainage.

“U”-Shaped Fire Front—As one moves northeast from the area where Erickson saw the spot fire, the vegetation changes from predominantly Gambel oak to pinyon-juniper and grass with some scattered Douglas-fir. The conifers and grass extend up the slope to the Photo Point. Erickson said that fire on the east-facing slopes (covered mostly with pinyon-juniper and grass) was more advanced than the fire on the west-facing slopes. This suggests that the fire was spreading faster in the pinyon-juniper and grass than in the oak. This is consistent with observations from other fires. As the spot fire observed by Erickson spread into the grass and pinyon-juniper, it moved northeast up the slope reaching a point on the Main Ridge approximately 100 feet north of the Zero Point. This fire could have been the source of the heat felt by Robertson and Archuleta as they traveled north along the Main Ridge directly east of the Photo Point.

When the West Flank Fireline Group neared the draw at the base of the last steep pitch in the fireline, the main fire front was 450 feet west and 400 feet southwest of them (about 1612). Fire extended up the south side of the Spur Ridge to the Main Ridge, around the bottom of the Spur Ridge, across the Draw below the Tree, and partially up the slope below the Photo Point. The fire burning up the slope in the pinyon-juniper and grass north of them may have been even closer.

This suggests that by 1613 the fire front formed a “U” or concave shape with the West Flank Fireline Group in the middle (fig. 40). From a physical perspective, such a “U” shaped fire front is inherently unstable. The unburned area within the concave fire front received heat from three sides rather than one. The presence of fire on multiple sides increased the amount of energy incident on the vegetation around the firefighters. This caused rapid ignition and fire spread up the last section of the fireline. The sequence of rapid preheating, ignition, and fire spread would likely have been perceived by the firefighters, especially those in the lower portion of the West Flank Fireline Group, as nearly instantaneous ignition of the vegetation around them. Movement of air in front of the fire as it ignited a large area and accelerated up the fireline could have been the source of the blast of hot air felt by Hipke. It could also have caused convective heating followed by radiant heating as the flames progressed up the slope.

Doehring and Archuleta’s photographs and Erickson’s observations place fire below the West Flank Fireline Group. The wind, slope, and vegetation combined to result in the fire spreading rapidly north up the West Drainage and east to the top of the Main Ridge. The sequence of fire perimeters shown in figure 40 would have been essentially the same in all cases presented in this report.

Surfacing Smoke Column—A turbulent gust associated with strong westerly winds pushing against or through the smoke column is an alternate source for the blast of air that hit Hipke. This assumes that fire was burning up the south side of the Spur Ridge and northeast up the West Drainage directly west of the West Flank Fireline Group. It is possible that the strong west winds blowing across the tops of the north-south oriented ridges pushed the column of smoke and burning gases against the slope around the firefighters. As the gust hit the slope it carried hot air, smoke, and embers. Evidence suggests that smoke existed in sufficient quantities to impair their breathing, vision, or both. The embers and hot air enhanced preheating, ignition, and fire spread around the firefighters hiking up the fireline. Firefighters breathing in the hot gases were quickly incapacitated.

As Hipke hiked up the last 80 feet of the fireline and crossed over the Main Ridge, he suffered burns although he was attempting to shield his ears and face with his hands. The most severe occurred on his right side and back, with some lesser injury to his left side. Hipke states that the burns occurred shortly before and during the blast of hot air. Neither Hipke nor Erickson remember seeing flames nearby when they exited the fireline and crossed over the Main Ridge. If the column of hot air and smoke above the fire was pushed against the slope, convective heating would have occurred before the vegetation ignited. Radiant heating would have followed. It is also possible that smoke could have obscured the firefighter’s view of flames in the area while not fully shielding them from the radiant heat emitted by the flames. While they do not recall seeing flames near the Zero Point, the lack of fire at the top of the ridge, and Hipke’s testimony about the blast of air, lend some support to the possibility that the smoke column surfaced against the slope.

General Upslope Spread—While the West Flank Fireline Group hiked up the lower portion (south of the Spur Ridge) of the fireline, they were moving in the same general direction as the fire (predominantly north). The fire was spreading north up the West Drainage at about 3 feet per second while the firefighters were moving at 4 to 5 feet per second. As the group passed the Stump and started up and over the Spur Ridge their rate of travel slowed to less than 2 feet per second. After crossing the Spur Ridge, the fireline turns eastward upslope to the Main Ridge. While the path between the point where the fireline crests the Spur Ridge and the Draw is not steep, the footing was rough and uneven due to the multiple oak stobs along the ground. We estimate that the firefighters traveled between 3 and 4 feet per second. Of even greater importance is the relative direction of travel. As the firefighters hiked over the Spur Ridge and started along the last segment of the fireline, their direction of travel relative to the fire’s major direction of spread changed. They were moving generally east, while the fire was spreading generally northeast. Thus, as the group passed the Stump, the distance separating them and the fire began to decrease.

As the crew moved through the Draw and started up the last and steepest section of the West Flank Fireline their rate of travel decreased to between 1 and 3 feet per second. The fire spread upslope as fast as 9 feet per second.

Between 2 and 3 minutes elapsed between the time the first members of the West Flank Fireline Group passed the Draw until they were caught by the fire. We plotted the high and low estimated fire spread rates against the rate of firefighter movement for the period 1607 to 1614. Figure 41 presents these data. Our analysis indicates that when the first members of the West Flank Fireline Group neared the Draw (time, 1610), the fire was approximately 450 feet south and southwest of them. By 1611 the fire was directly below them.

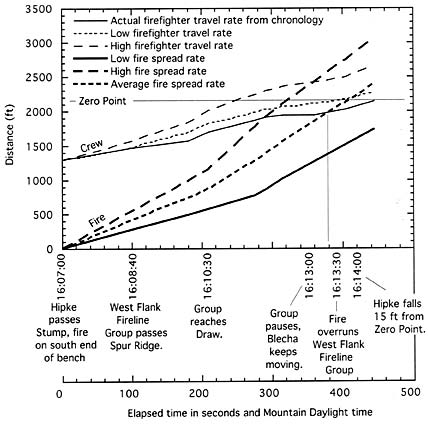

Figure 41—Time/distance diagram depicting the speed and distance covered by the firefighters hiking up the last portion of the West Flank Fireline versus that for the fire. The data used for this figure were obtained from appendix B. The high and low firefighter travel rates were obtained by actual reenactments by two physiologically different adult males (see table B-4). Note that the actual speed of the West Flank Fireline Group was slower than the lowest reenacted values. The fire spread rates are approximate values taken from table B-8.

Using crew travel rates taken from the chronology and the average fire spread, we estimate that the fire reached the firefighters at 1613:15.

Figure 41 illustrates the speed with which the fire caught and overburned the firefighters. In the previous sections we presented two scenarios by which the fire caught and overran the firefighters. This analysis suggests general fire spread up the Draw below the last section of the West Flank Fireline could have overrun the firefighters: a third scenario. The blast of hot air felt by Hipke could have been associated with the expansion of air in front of the fire as it quickly spread up the slope.

Helitack—After leaving H-2, the two helitack crewmembers moved along the top of the Main Ridge, moving generally north, perhaps in an attempt to reach the Drop Zone where they hoped to meet the helicopter. As the fire burned eastward across the saddle, it would have blocked the helitack crewmembers from following the others out the East Drainage. Possibly in an effort to reach an outcropping of rocks, the two firefighters continued northwest. They died in the bottom of a steep narrow gulley. The gulley would have acted as a chimney, channeling hot gases and smoke up the slope to their location about a minute after they entered the gulley.

Contributing Factors—Each of the three proposed fire scenarios provide some explanation for the rapid entrapment of the crew and the blast of hot air felt by Hipke. Witness statements indicate that the firefighters were aware that the fire was burning as a wide front behind them. There has been some question why the firefighters did not increase their rate of travel or did not drop their gear to exit the area more quickly. We have not addressed psychological or emotional factors in this report, but leave that topic for future analyses.

Other factors reduced the ability of the firefighters to fully identify the location of the fire. Postfire evidence did not indicate an organized attempt by the group to deploy their fire shelters. This suggests that the group was surprised by the fire. As the firefighters hiked up the West Flank Fireline they could see the fire from some selected locations (for example, Hipke saw the fire below them from a location near the Stump). However, much of the time, the 6 to 12 foot high oak brush hindered their view of the fire. The smoke in the air further reduced the ability of the firefighters to see the fire. Witnesses state the noise from the fire was as loud as that produced by a train or jet airplane.

It is likely that the area around the fatality site was quickly engulfed in smoke just prior to or during the burnover. The lack of a clear view of the fire and the loud noise created by the fire would have prevented the group from fully sensing how fast the fire was closing the gap between it and them. Their likely inability to identify the location of the fire is one explanation for the evidence suggesting that the group was surprised by the fire and did not realize how close the fire was or where to go to escape it.

We suspect that the “U” shaped fire front occurred. However, we also believe it likely that the strong westerly winds pushed the column of hot air and smoke against the slope. Our analysis suggests that general upslope fire spread was two to three times faster than the firefighters’ upslope travel rates.

Fuel-Air Explosion—Hot air, smoke, and burning embers hit Smoke-jumper Hipke 15 feet west of the Zero Point; he jumped and fell forward. When he stood up he had to raise his hands to continue to shield his face from the heat. He was burned on his back and sides with some indication of slightly more severe burning on his right side (Hospital Report 1994). The hot air blast originated from behind him. There has been considerable discussion as to the source of the blast of air. In fact, this evidence raised questions about the possibility of a fuel-air explosion over the West Flank Fireline. The other factor suggesting a fuel-air explosion is the apparent suddenness with which the fire overran the 12 firefighters on the West Flank Fireline. The firefighters were burned while still in line, many with their packs still on, and only a few showed signs that they had tried to deploy their fire shelters.

We do not believe that a fuel-air explosion occurred. This theory assumes that combustible gases accumulated in sufficient concentration to result in an explosion. Although several firefighters testify that winds on the West Flank Fireline were calm, we believe that strong winds and turbulence existed in the air above the fireline. This turbulence, the general instability, and the topography lead us to believe it unlikely that combustible gases could have accumulated in sufficient concentrations to support an explosion.
